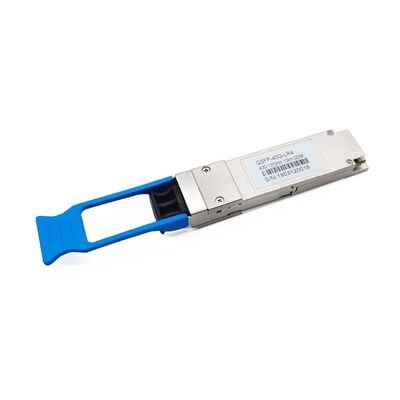

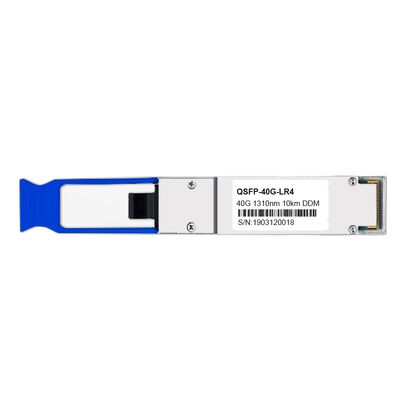

QSFP-40G-LR4  QSFP+ 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fibre (SMF) using a wavelength of 1310nm via duplex LC connectors. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parametres. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centres, high-performance computing networks, enterprise core and distribution layer applications.

Features:

ü Supports 41.2Gbps aggregate bit rates

ü Uncooled 4x10.3Gbps CWDM transmitter

ü High-sensitivity PIN-TIA receiver

ü Up to 10km on SMF

ü Duplex LC receptacles

ü Hot pluggable QSFP+ form factor

ü Power dissipation < 3.5W

ü All-metal housing for superior EMI performance

ü RoHS6 compliant (lead free)

ü Operating case temperature:

Commercial: 0ºC to +70°C

1. Imported chip
Low power consumption, stable signal transmission

2. Nano thickened gold-plated contact
Plug and play, ensure repeated insertion and withdrawal, stable contact, prevent cool contact, and improve the life of electric shock wear.

3.High quality stainless steel housing
High quality SUS304 stainless steel housing,environmental protection, strong and sturdy, abrasion resistance,high temperature resistance, corrosion resistance, good hear dissipation effect.

Product compatible

Extensive compatibility with SFP port switch of Cisco,ZIE中兴,HP, Itel, ect.

Widely Application:

Widely used with fiber switch, fiber router,firewall, fiber network card, the Server, fiber transceiver, CCTV, etc.

OEM Service:

Yingda support OEM Logo and model No# of client's demand.

FAQ:

Q1: What brand is the SFP Module?

A1: The SFP Module is manufactured by YINGDA, a reputable brand known for quality networking products.

Q2: Does the SFP Module have any certifications?

A2: Yes, the SFP Module is certified with ISO and CE, ensuring it meets international standards for quality and safety.

Q3: Where is the SFP Module made?

A3: The SFP Module is made in China.

Q4: What is the minimum order quantity for the SFP Module?

A4: The minimum order quantity for the SFP Module is 10 pieces.

Q5: What are the payment terms available for purchasing the SFP Module?

A5: The accepted payment terms are D/A, D/P, and T/T.

Q6: How long does delivery take for the SFP Module?

A6: The delivery time for the SFP Module is typically 5-7 working days.

Q7: What is the price range of the SFP Module?

A7: The price of the SFP Module ranges from 3.6 USD to 19.9 USD depending on the specifications and order quantity.

YINGDA 'S SFP modular production line:

SHENZHEN YINGDA PHOTONIC CO.,LTD. is a professional Fiber Optic Network Supplier. We committed to provide customers with high quality FTTH solutions and satisfying service.Our advantage products: fiber optical distribution box, fiber termination box, optical fiber patch cord, fiber optic adapters, optical PLC splitter, Fast mechanical connectors, etc. Yingda can provide FTTH, ODN, GPON, FTTA solutions on customer request too. Hope we can help more customers win more market and get more profit.

Our Advantages
