Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH

Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH

Nome da marca:	YINGDA
Número do modelo:	Patch cord de conector de metal
MOQ:	500 unidades
preço:	0.36USD-30USD
Tempo de entrega:	7 dias após o pagamento
Condições de pagamento:	Western Union, T/T.

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ISO CE ROHS

Conector:

SC/APC

Contagem de fibras:

2 núcleos

Perda de inserção:

Comprimento do cabo:

5 metros

Diâmetro do cabo:

3,0 mm, 5,0 mm

Tipo de fibra:

único modo 9/125um

Pacote:

Saco plástico

Cor do cabo:

Preto

Appliatoin:

Estação base

Material do cabo:

Nome do produto:

Cabos de fibra óptica,cordões de fibra óptica,cordões de fibra óptica,cordões de fibra óptica,cordõe

Detalhes da embalagem:

1 peça/caixa, 200 peças/caixa de papelão

Habilidade da fonte:

60.000 PCes pelo mês

Destacar:

SC/APC fiber patch cord

pre-connector fiber optic cable

FTTH duct fiber patch cord

Descrição do produto

Pushable Fiber Cable Pre-Terminated Metal Head SC/APC FTTH for Tool-Free Installation

Pushable Patch Cords is a type of pushable fiber optic jumper, manufactured for quick, reliable and uncomplicated fiber deployment in FTTH and FTTX networks. This pre-terminated FTTH drop cable design is considered for easy routing into indoor walls, conduits, and places where microduct fiber optic solutions are used, without the need of coupling or splicing.

Yingda pre terminated the fiber optic cable are with pushable SC connector at one side, which can be directly pulling through a wall, then docking with fiber optic adapters, while the other side is standard SC connectors with rubber seal, which is designed to connect with the outdoor fiber splitter boxes, rubber seal prevent water from entering.

Product Description:

YINGDA Pushable cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments.

The bullet pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall.

This bullet Pushable assembly can be successfully pushed through small holes and microduct . Hand push distances vary according to bend frequency and duct quality; The rugged round drop cable with the pushable pre-terminated connector, reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.

Specification

Fiber Mode	Single mode
Fiber Count	1
Polish or Ferrule Interface Type	APC
Connector A	Metal SC APC
Connector B	SC APC with Rubber boot
Cable Lengths	customized
Jacket Materials	Indoor/outdoor LSZH Material
Outer Jacket Color	Black or White
Outer Jacket Diameter(mm)	3.0mm or 2.0*5.0 Flat Drops
Fiber Type	G657A2
Inner Cable Diameter	0.9mm
Inner cable Color	Blue
Storage Temperature	-20°C to 60°C
Installation Temperature	-5°C to 50°C
Operating Temperature	-20°C to 60°C
Crush(N/100mm)	1000
Maximum Tensile Load (Long term)	150N
Minimum Tensile Load (Short term)	400N

Figure 8 Fiber Cable Specification

Item	Value
Connector	SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc.
Operating wavelength	1260-1650nm
Fiber type	G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc.
Cable jacket	LSZH, PVC, PE, TPU, etc.
Polish manner	UPC, APC(8°), PC
Fiber radius of curvature	≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion Loss	≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750
Return Loss	UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750
Repeat ability	±0.1dB
Operating temperature	-40 ° C to 85 ° C
Geometry Requirement (For Single mode)	Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

G.657A2 Fiber Parameters

No.	Items			Unit	Specification
					G657A2
1	Mode Field Diameter		1310nm	μm	9.0±0.4
			1550nm	μm	10.1±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λ_cc≤1260
9	Attenuation(max.)		1310nm	dB/km	≤0.4
			1550nm	dB/km	≤0.3
10	Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
		1turn×10mm radius @1625nm		dB	≤1.5

Application:

FTTH / FTTX – Indoor & outdoor drops
Single and multi-dwelling units
FTTP and campus networks
Rural broadband
DAS / FTTA

Features:

Terminations designed and tested to Telcordia GR-326
Decreased deployment times and reduced installation costs by eliminating in-field splicing.
Tool-less Installation, wall protective sleeve is easily removed and outer housing snaps into place
Guaranteed Insertion loss/return loss
REACH & RoHS compliant

Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH 0

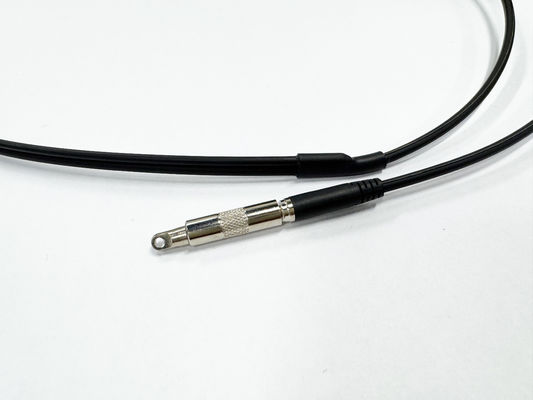

The one side with metal connector can be diretly pulling through a wall,and this metal connector of connector is made of alloy material, which is easy to plug and unplug, with small fluctuation in insertion loss, high compressive strength, high installation density, high temperature resistance, and not easy to oxidize,also can used for small pipelines or small wall holes.

Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH 1

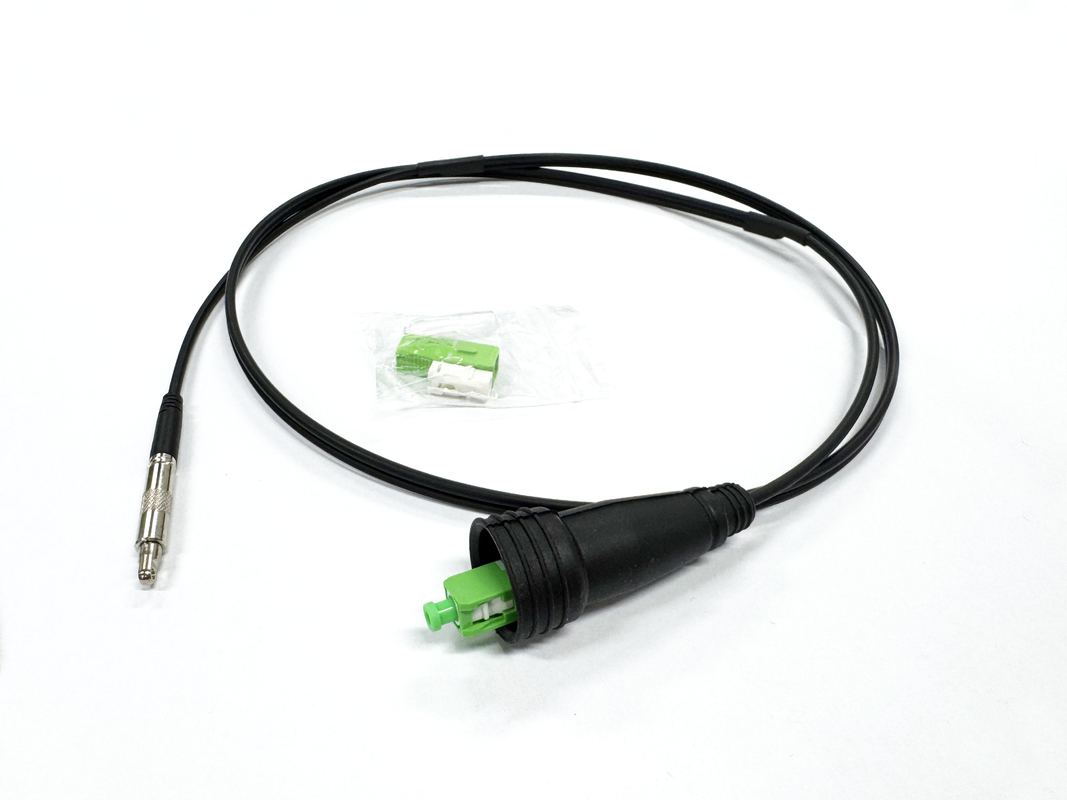

The one side is standard SC connectors with rubber seal, which is designed to connect with the outdoor fiber splitter boxes, rubber seal prevent water from entering.

Pushable Pre-connector SC/APC Metal Connector Fiber Patch Cord Black For Through The Duct And Wall FTTH 3

The length can be customized to your needs. 1M,5M,10M,20M,50M,100M and more.
