Single Mode FTTH Fiber Optic Splitter 1X2 1X4 1X8 with ABS Box 2.0mm for FTTA Optical Fibers Equipment Use in FTTH

Single Mode FTTH Fiber Optic Splitter 1X2 1X4 1X8 with ABS Box 2.0mm for FTTA Optical Fibers Equipment Use in FTTH

Nome da marca:	YINGDA
Número do modelo:	YD-PLC-LG-108-FC-15
MOQ:	50 pcs
preço:	1.1USD-4.58USD
Tempo de entrega:	5-8 dias após o pagamento

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

ISO SGS ROHS

Conector:

FC SC LC ST tudo bem

Tipo de fibra2:

G657A1, G652D SMF-28e

Perda de inserção:

10.2 / 10,5 dB

Uniformidade (máximo):

DB 1,5

Comprimento de onda:

1260 - 1650 nm

PDL ((Max.):

0,2 DB

Tamanho do módulo:

100×80×10mm

Tamanho quadrado do tubo:

40×4×4mm

Tamanho do tubo plano:

60×7×4mm

Comprimento da fibra:

1.5Meter

Diâmetro do cabo:

2,0 mm

Detalhes da embalagem:

1pc/caixa

Habilidade da fonte:

10.000 PCs por mês

Descrição do produto

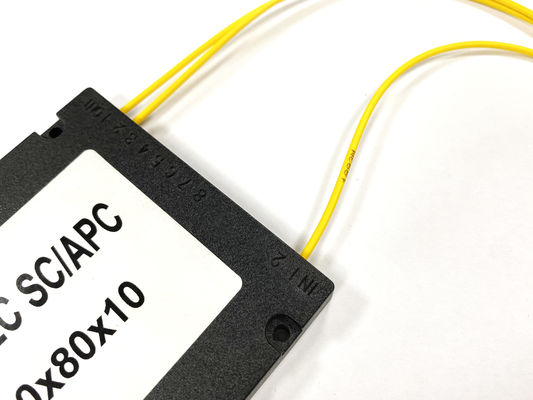

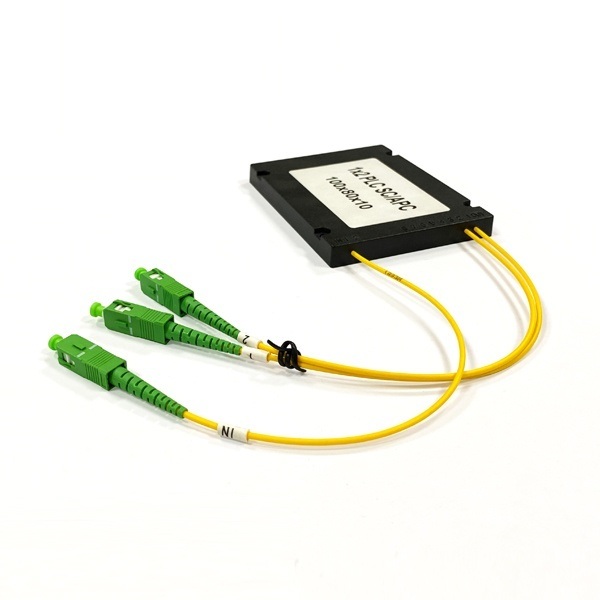

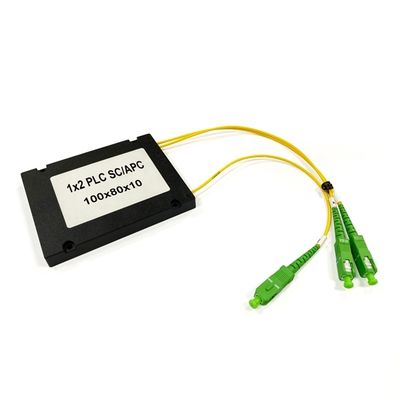

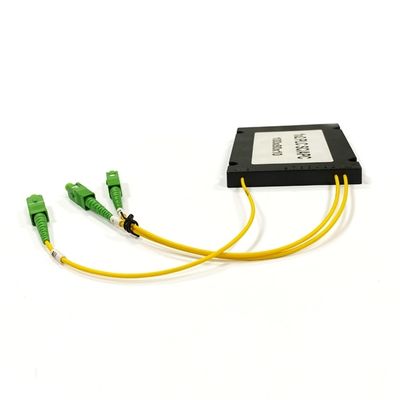

1*2 Fiber Optical Splitter Module, Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm

Planar wave guide optical separator (PLC Splitter) is an integrated wave guide optical power distribution device based on quartz substrate, which has the characteristics of small volume, wide working wavelength range, high reliability, and good light separation uniformity.

It is especially suitable for the passive optical network (EPON, BPON, GPON, etc.) to connect the local terminal and terminal devices and realize the separation of optical signals. ,

YINGDA provides whole series of 1xN and 2xN splitter products for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Sell point

1.Brand Promise: YINGDA is committed to providing high-quality and reliable products. The Summitedek Single Mode Fiber Optic Splitter is backed by a powerful warranty of 1 year, ensuring the customer's satisfaction and trust in the brand.

2.Advanced Splitter Technology: The Summitedek Single Mode Fiber Optic Splitter boasts breakthrough PLC splitting technology, offering a wide array of port options including 1X2, 1X4, 1X8, catering to versatile connectivity needs and making it suitable for various FTTX scenarios.

3.Versatility and Adaptability: The Splitter's compatibility with different data networks (such as 5G, 4G, GSM, and 3G) makes it suitable for various network environments, ensuring adaptability to evolving technology demands. Moreover, it can support multiple ports and flexible power supply with a DC 12V configuration.

4.Robust Construction: The strong ABS material used in the Splitter box guarantees its durability and resilience, ensuring the protection and stability of the connected fiber optic equipment even under challenging conditions.

5.High Connectivity Standards: The LF Single Mode Fiber Optic Splitter features LC and APC connectors, which are industry standard connectors. This provides a high level of connectivity and compatibility with existing installations and future upgrades. The length of 1m ensures easy and flexible placement in various settings.

Features

1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package

Application

1. FTTx Systems
2. Digital, hybrid and AM-Video systems
3. LAN,WAN and Metro Networks
4. CATV systems
5. Other applications in fiber optic systems

Specification

Optical Parameter		Wavelength Range: 1260~1650nm
		1X4	1X8	1x16	1X32	1x64		2X4		2X8	2x16		2X32
Isolation Loss(dB)	With Connector (Max)	7.7	11.5	14.5	18.2	20.4		8		11.6	15.1		18.2
	Without Connector (Max)	7.5	11.3	14.3	18.0	20		7.8		11.4	14.9		18
Uniformity (dB)	With Connector (Max)	0.8	1.0	1.4	1.9	2.7		1.5		1.5	2.0		2.5
	Without Connector (Max)	0.6	0.8	1.2	1.7	2.5		1.7		1.7	2.2		2.7
PDL(dB)	With Connector (Max)	0.3						0.2		0.4	0.4		0.4
	Without Connector (Max)	0.2	0.3	0.3	0.3		0.3	0.4
Return Loss(dB)	With Connector (Mix)	UPC: 45, APC: 50
	Without Connector (Mix)	50
Directivity (dB)	Min.	55
Package Size	(LxWxH mm)	4x4x50		4x7x50			4x12x60		4x5x50			4x8x50
Operation Temperature (°C)		-40~+85
Length of Pigtail(m)		According to customer’s requirement
Type of Pigtail(mm)		0.9,2 or according to customer’s requirement
Type of Connector		FC, SC or according to customer’s requirement

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB) (S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes

Specified without connectors.
Add an additional 0.2dB loss per connector.
1x64,1x128,2x64 also can be offered

More types are available
